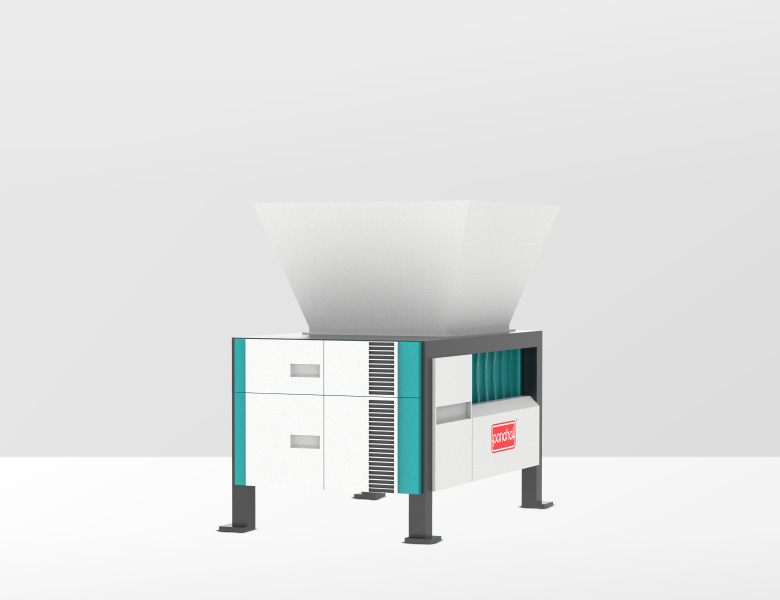

Double / Four Shaft Shredder

Double-Shaft-Shredder

Our Double Shaft series, including Double Shaft Shredder Blades, Double Shaft Shredder Machine, and competitive Double Shaft Shredder Price, is engineered for robust industrial use, ideal for heavy-duty applications. These two-shaft shredders, also known as rotary shears, excel at shredding metals and tires, delivering efficient recycling solutions.


Whether you need to process plastics, tires, or other materials, Panchal Plastic's Double Shaft series provides reliable and efficient industrial recycling solutions. Contact us today to learn more about our high-quality recycling equipment.

Download Catalogue Inquiry Now

Details of Double / Four Shaft Shredder

Features
  • Solid Body Structure and Casing: Designed with a stable construction and tough housing to withstand demanding shredding tasks.
  • Heavy Rotor: operating with a strong rotor for the purpose of increased cutting performance, thereby making the material being shredded more effective.
  • Hardened Cutting Shaft: characterised by a cutting shaft made of hardened material to stand up to the rigorous work of shredding items.
  • Heavy Duty Special Gearbox: Features a heavy-duty gearbox for the purpose of dealing with the high torque needed for shredding.
  • Low Noise Level: Quietly operates and, hence, creates a serene atmosphere for work.
  • PLC Base Panel: The control panel is PLC-based for convenient operation, and its settings can be adjusted and monitored for optimal shredding.
Application
  • The SD-Series Double Shaft Shredder is designed to operate continuously in a tough industrial environment and is suitable for processing plastic, paper, e-waste, car tyres, wood, metals, textiles, and cardboard. Its additional shredder chamber allows for great shredding of bulky items like plastic lumps, crates, pipes, and films, as well as paper boxes, rejected books, and documents.

Description

Growing environmental awareness demands innovative solutions, and PANCHAL delivers just that. Our machines offer an economical way to shred plastic, paper, and cardboard, contributing significantly to resource conservation. Whether you need to process large or small quantities of waste, our versatile shredders can efficiently handle a variety of materials, including paper, cardboard, sheets, rolls, and more. Equipped with robust drives and specially configured rotors for paper and cardboard shredding, our machines ensure efficient processing with minimal operational costs. Contact us today, and we'll recommend the perfect machine for your recycling needs.

Technical Benefits
  • Rugged rotor blade cutting system
  • Individually fitted, replaceable cutter discs
  • Range of cutter widths and cutter shapes
  • Bulkhead seals to protect the shaft bearing
  • Mechanical and hydraulic drive systems available
  • PLC unit featuring automated reverse and power down
  • Control Panel with advance technology

Technology

Shredder Crusher
Shredder Rotor
Shredder crusher Control Panel
Control Panel

Technical Data

MODEL PPM-14/20SD PPM-17/20SD PPM-19/20SD PPM-23/24SD PPM-30/33SD PPM-40/44SD PPM-50/33SD PPM-60/33SD
Main Motor (HP) 10 15 25 30 40 60 75 100
KNIVES SIZE (MM) 25/40/75 25/40/75 25/40/75 25/40/75 25/40/75 25/40/75 25/40/75 25/40/75
CUTTER HOUSE (MM) 350 X 500 425 X 500 475 X 500 575 X 600 750 X 825 1000 X 750 1250 X 825 1500 X 825
