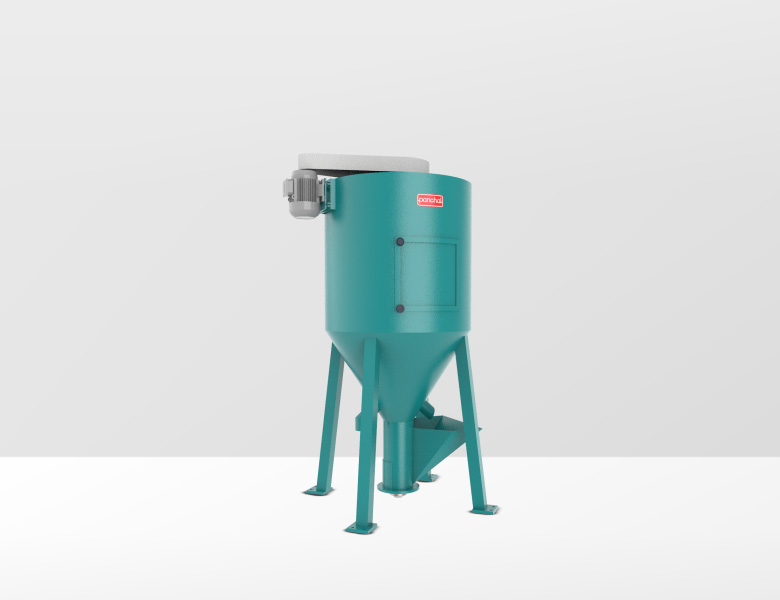

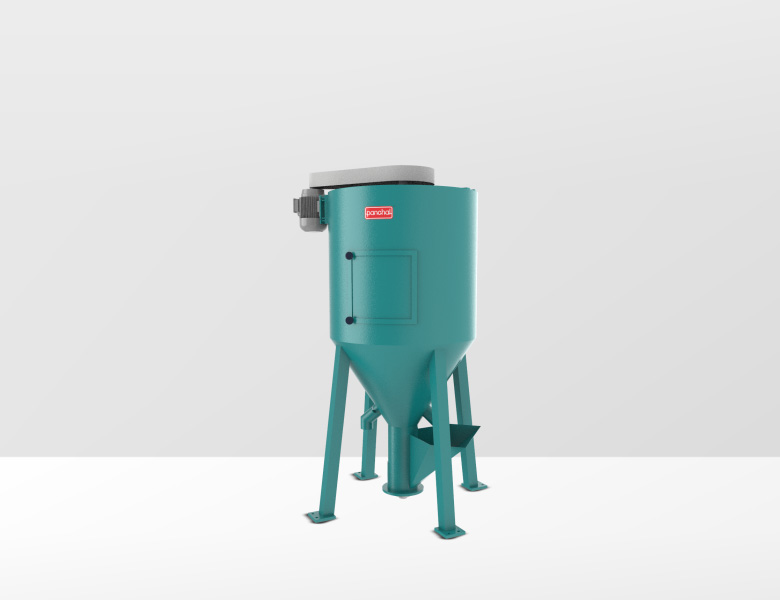

Vertical Mixer Silo Screw Type

High-Speed

A vertical mixer silo screw type is a piece of industrial equipment that is used to mix granules for a variety of applications, including the production of plastic products. The vertical mixer silo screw type consists of a vertical silo with a screw conveyor at the bottom. The granules are added to the silo and the screw conveyor mixes them together. The mixed granules are then discharged from the silo through a valve at the bottom. Vertical mixer silo screw type mixers are ideal for mixing bulk plastic granules in a variety of industries, including plastic injection, recycling, and extrusion. These mixers offer a number of benefits, including efficient mixing, uniform mixing, and a gentle mixing action that prevents the materials from being damaged. The vertical mixer silo screw type has a number of advantages over other types of mixers, including: High degree of mixing: The vertical mixer silo screw type provides a high degree of mixing, which is essential for producing high-quality products. Gentle mixing action: The vertical mixer silo screw type uses a gentle mixing action, which prevents the granules from being damaged. The vertical mixer silo screw type is available in a variety of sizes and capacities to meet the needs of different applications.

Download Catalogue Inquiry Now

Details of Vertical Mixer Silo Screw Type

Features

  • Stainless Steel Mixer Barrel: The mixer barrel is made of stainless steel, which makes the mixer very strong and not easily affected by rust. This makes the contents safe and also ensures that the mixer has a longer life expectancy.
  • Safety Security System: This mixer has a safety feature that will protect the operators from being harmed while using the machine. It helps to make sure that the machine is functioning well and there is no mishap.
  • High Performance with Low Energy Consumption: As for the mixer, I have observed that it is quite effective in combining the different types of plastics and other materials. This it does in a very effective manner, that is, it uses less energy, which is very useful in conserving electricity.
  • 24-Hour Timer: This timer is particularly important in ascertaining the duration of time the mixer has been running. It also has the option of stopping the machine once it is done with the mixing process, saving energy and overworking the machine.
  • Optimised Configuration for Easy Use and Maintenance: The mixer is quite simple and is designed to be operated in a conventional way. It is convenient to use and control, and it is also convenient to clean and does not require much care. In this way, there is no disruption to the flow of work, and the workers can use the machine without any difficulty.

Description

Specially designed for mixing Virgin + Master batch for homogenizes mixing for better processing extruder for better performance of color. Special tools design as per application.

Application

A vertical mixer silo screw type has been special in efficiently mixing virgin materials and master batches in order to carry homogeneous blends that are so important for enriched extrusion processing and colour performance. That means it's a kind of mixer that is used in various industries dealing with bulk plastic granules to fulfil the mixing process. The vertical silo and bottom screw conveyor ensure thorough mixing as the granules are gravity-fed into the silo and combined uniformly by the screw conveyor. Mixed granules are then discharged through a valve at the bottom, ready for further processing. The vertical batch mixer silo screw type is characterised by very high mixing efficiency, a gentle treatment to prevent damage to material properties, and a design adapted to various industrial applications. It is the finest solution to reliability for those seeking solutions with regard to effective material blending processes in their production.

Technology

Vertical Mixer
Mixing Screw
Vertical Mixer control

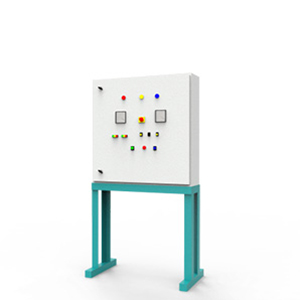

Control Panel

Technical Data

MODEL CAP. IN LITERS CAP. IN KG MOTOR HP
PPM-100 VSM 200 L 120 KG 1 HP
PPM-200 VSM 250 L 200 KG 3 HP
PPM-500 VSM 850 L 500 KG 4 HP
PPM-1000 VSM 1650 L 1000 KG 5 HP
PPM-1500 VSM 2450 L 1500 KG 7.5 HP
PPM-2000 VSM 3600 L 2000 KG 10 HP
PPM-5000 VSM 5000 L 3000 KG 15 HP
PPM-8000 VSM 8000 L 5000 KG 15 HP
PPM-10000 VSM 10000 L 6000 KG 15 HP
PPM-12000 VSM 12000 L 7200 KG 20 HP
PPM-15000 VSM 15000 L 9000 KG 20 HP
PPM-16500 VSM 16500 L 10000 KG 20 HP
PPM-20000 VSM 20000 L 12000 KG 20 HP
PPM-28000 VSM 28000 L 17000 KG 30 HP
PPM-40000 VSM 40000 L 24000 KG 40 HP
PPM-50000 VSM 50000 L 28500 KG 50 HP
