Friction Washer

Grinder-Injection-Series01

Friction washers are critical equipment in the plastic recycling process to clean and remove water from the plastic material, including film flakes and granules. These cylindrical machines are operated by an inclined high-speed screw, and they are very aggressive in washing the material to eliminate all the unwanted materials such as dirt and oils. The fines and water are separated from the ground material through a friction washer that is protected by a stainless-steel screen. Raw materials are fed into the machine at the base and exit the machine at the top outlet after passing through a very rigorous washing process to make them pure.

The key difference between friction washers is that they are very effective at removing contaminants and do not need much maintenance. This makes them ideal for any business that wants to cut costs and achieve the best results in their plastic recycling process. Friction washers have other features such as anti-wear steel blades, dynamic balanced rotors, and isolated bearing blocks that make them strong and long-lasting in harsh working conditions.

Details of Friction Washer

Friction washers are mainly used in the washing of plastic film and plastic flakes after shredding in the recycling chain.
They are essential for:

  • Washing of the plastic materials to remove undesirable substances like dirt and oils to obtain good-quality recycled products.
  • Removing water from the surface of the plastic flakes and granules to improve the purity of the material and the efficiency of subsequent processing.
  • Enhancing the efficiency of downstream equipment by providing clean and pre-conditioned materials for the subsequent stages of recycling.
  • Especially for facilities that are committed to sustainable practices, friction washers are a very important component of environmental initiatives as they help to reuse plastics. They allow businesses to participate in the circular economy by providing quality recycled plastics to meet quality standards for use in the packaging and manufacturing industries.
  • Discover the possibilities of our state-of-the-art friction washers today and experience a boost in your plastic recycling operations while being sustainable.

Features
  • Dynamic ballance Rotor for sturdy performance.
  • Drum Side wall with Pocket screen increase the drying and cleaning efficeincy.
  • Heavy duty welded machine steel construction.
  • Isolated bearing housing to keep away water to reach to the bearing.
  • Replacable Rotor.
  • Effective high friction washing.
  • Less Water Consumption.
  • Batch Process.

Technology

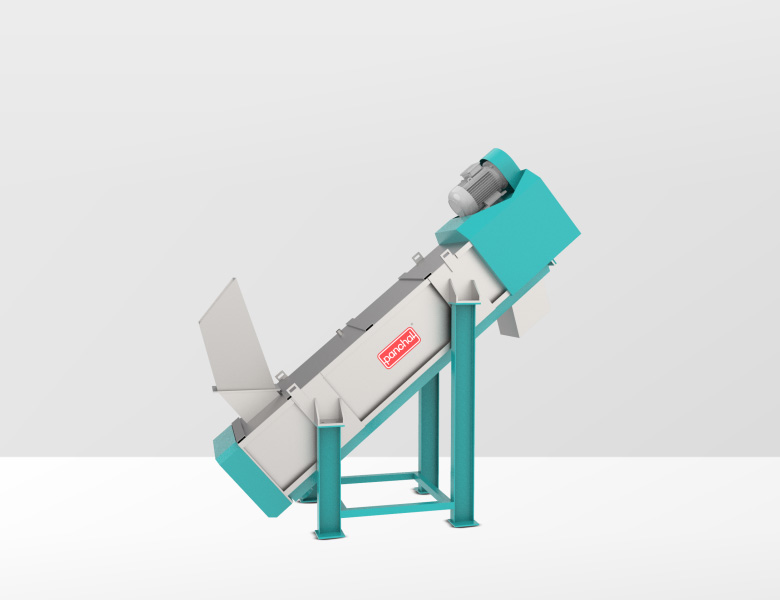

Friction washer

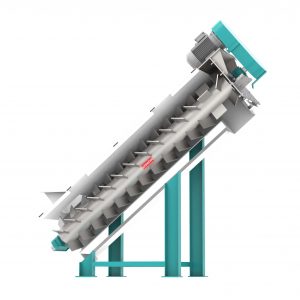

Screen Basket

Technical Data

MODEL PPM-40-150FW PPM-40-230FW PPM-70-250FW PPM-70-450FW
Main motor power (KW) 11 22 30 37
Rotor diameter (mm) 350 350 650 650
Type Incline Incline Incline Incline
Production Film (kg/hr) 300 700 1200 1500
Production Flake (kg/hr) 800 2000 3000 4000
