Features
- Rotor are dynamically balance.
- Split door on both side for screen/mesh & rotor access.
- Stainless Steel 304 construction.
- Gentle material treatment.
- Compact design.
- Low operating costs.

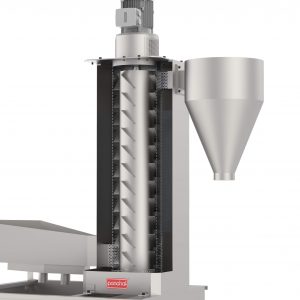

Centrifugal Dryer (Vertical type) is an Centrifuge which remove surface water from Soft to Rigid material.
Input Moisture 25%
Output Moisture 2-3% Rigid material like HDPE/PS/ABS/PET Flakes Soft material like LDPE/HDPE/PP Film.
For a gentle drying of the plastic flakes & virgin granule like PE, PA, PP, PS with simultaneous separation of impurities and fines
Centrifugal force in the spin dryer or vertical dryer generates a high firiction. The water or steam of dried materials with therfore also be disposed of dust by the vertical screens.
| MODEL | PPM-200VD | PPM-300VD | PPM-500VD | PPM-1000VD | PPM-1500VD | PPM-2000VD |
|---|---|---|---|---|---|---|
| Main Motor (HP) | 5 | 7.5 | 10 | 20 | 30 | 40 |
| Production Kg./Hr. | 100-200 | 200-350 | 400-500 | 750-1000 | 1250-1500 | 1600-2000 |
