Turbo Washer

Grinder-Injection-Series01

The Panchal Plastic Turbo-washer is a new generation washing technology through which the pre-washing tanks of the older generation washing plants have been done away with. It employs a vertical centrifuge design that offers washing and the first stages of drying of heavily contaminated pre-shredded material. This includes papers with high paper content and residual aluminium foil content. Key features of the Turbo-washer include: Some of the features of the turbo-washer include the following: better recovery rate for the sink float tank. Dynamic Balanced Rotor for the best performance. a drum side wall with a pocket screen to enhance the drying and cleaning of the garments. design of the product using heavy-duty welded machine steel to enhance the durability of the product. The bearing housing is made in such a way that it is separate from the outer casing to prevent water from getting to it. The rotor can be easily removed, and another one can be fitted in its place when it is being used for maintenance. hard-working wash that can be done with little water. batch processing to improve the productivity of the work.

Details of Turbo Washer

Read more about the Panchal Plastic Turbo-washer, the new generation of plastic washing machines with vertical centrifuge technology. Intended for washing prerendered materials with high levels of contamination and containing a lot of paper and aluminium foil, our Turbo-washer enhances the Sink Float Tanks’ performance and yield. It is designed to be strong and effective, has a dynamically balanced rotor, and is made from steel. It also employs low amounts of water through its effective high-friction washing technology, making it environmentally friendly. Come to our turbo-washer today to find out how to get more out of plastic recycling and spend less.

Features
  • Dynamic ballance Rotor for sturdy performance.
  • Drum Side wall with Pocket screen increase the drying and cleaning efficeincy.
  • Heavy duty welded machine steel construction.
  • Isolated bearing housing to keep away water to reach to the bearing.
  • Replacable Rotor.
  • Effective high friction washing.
  • Less Water Consumption.
  • Batch Process.

Technology

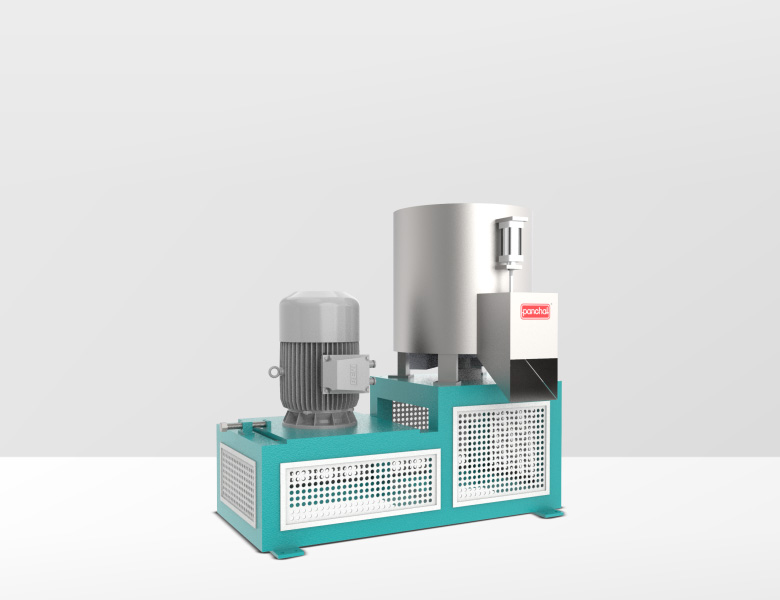

Turbo Washer

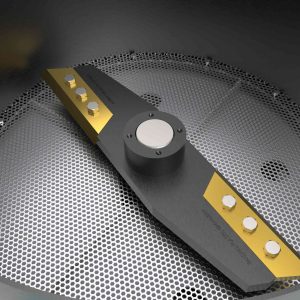

Washing Rotor

Technical Data

MODEL PPM-24/30TW PPM-32/39TW PPM-40/42TW PPM-48/50TW
DRUM SIZE (INCHES/MM) "24"" (600mm)" "32"" (800mm)" "40"" (1000mm)" "48"" (1200mm)"
ROTATING TYPE High Friction High Friction High Friction High Friction
MOTOR HP 25 HP 50 HP 75 HP 120 HP
PRODUCTION /OUTPUT KG/HR* 100/150 300/500 500/800 1000/1200
